Airtightness vs Ventilation: What’s the Difference?

Airtightness vs Ventilation: The Mistake That's Making Australian Buildings Sick

Key Takeaways

Airtightness and ventilation are not the same thing, and confusing the two is one of the most common (and costly) mistakes in high-performance building.

A building can pass an airtightness test and still make people sick if it has no proper mechanical ventilation strategy.

Sealing a building without adding controlled fresh air increases the risk of condensation and mould.

The industry standard for airtightness testing in Australia is AS/NZS ISO 9972, using a blower door at 50 Pa.

The fix is one sentence: build tight, ventilate right. Seal the envelope, then bring fresh air in on purpose.

There’s a myth going around Australian construction sites that refuses to die: that sealing a building tight is the whole job. It isn’t. An airtight building with no ventilation strategy doesn’t perform better, it just fails differently, and often more expensively, through condensation, mould, and poor indoor air quality.

Airtightness and ventilation solve two different problems. Get one without the other and you haven’t built a high-performance building. You’ve built a sealed box with a health problem waiting to happen.

What Airtightness Actually Means

Airtightness is about stopping uncontrolled air movement through gaps, cracks, and poor detailing in the building envelope: around windows, penetrations, junctions, and services. It has nothing to do with stopping fresh air altogether.

How Airtightness Is Measured (AS/NZS ISO 9972)

In Australia, airtightness is tested using a blower door, a calibrated fan fitted to an external doorway that pressurises or depressurises the building to a standard 50 Pa differential.

The result is expressed as envelope permeability, measured in m³/h/m² of envelope area, against the requirements of AS/NZS ISO 9972 and the National Construction Code. A tighter result means less energy wasted heating and cooling air that’s simply leaking out through gaps nobody accounted for.

That’s the whole scope of airtightness: control where air moves through the envelope. It says nothing about how the people inside actually breathe.

What Ventilation Actually Means

Ventilation is the deliberate, controlled introduction of fresh air and removal of stale, moist, or polluted air. In a loose, leaky building, this used to happen accidentally, air just found its way in and out through every gap. That accidental exchange is inefficient, impossible to control, and nothing to rely on.

Mechanical Ventilation vs Passive Ventilation

Passive ventilation (opening a window, trickle vents, gaps under doors) depends on the occupant remembering to do it, and on the weather cooperating.

Mechanical ventilation, using systems like heat recovery ventilators (HRV) or energy recovery ventilators (ERV), moves fresh air in and stale air out on a schedule, regardless of whether anyone opens a window.

For a genuinely airtight building, mechanical ventilation isn’t optional. It’s the system that replaces the accidental air exchange you just sealed out.

Why Fresh Air Doesn't Happen "By Accident" in a Tight Building

This is the part that trips up otherwise well-built projects. Every improvement in airtightness closes off a pathway that fresh air used to sneak in through.

If nothing replaces that pathway, indoor air quality drops, moisture has nowhere to go, and the building starts working against its own occupants.

Why Airtight Without Ventilation Goes Wrong

Condensation: The First Warning Sign

Every household generates moisture: showers, cooking, breathing, laundry. In a leaky building, a lot of that moisture escapes through the same gaps that were leaking heat.

Seal those gaps without adding ventilation and the moisture has nowhere to go. It hits a cold surface, usually a window or an external wall, and condenses.

Mould: The Cost of Ignoring It

Condensation left unmanaged becomes mould.

Mould in an airtight, poorly ventilated building isn’t a one-off maintenance issue, it’s a recurring, structural, and health problem. It damages linings, degrades indoor air quality, and in commercial or healthcare settings, can breach compliance requirements entirely.

This is the exact failure mode that gives airtight construction a bad name, when the real fault is a missing ventilation strategy, not the airtightness itself.

Build Tight, Ventilate Right:
The Principle That Fixes Both Problems

The fix isn’t complicated, it’s a design sequencing problem. Build tight, ventilate right. Seal the envelope deliberately and verify it with testing, then design a mechanical ventilation system sized and commissioned for that level of airtightness.

One without the other isn’t half a solution, it’s a different problem entirely.

This is why airtightness should never be treated as a finishing touch bolted on at the end of a build. It needs to be designed alongside the ventilation strategy from schematic design onward, not discovered as a surprise during a compliance test.

How Aerotight Helps You Get the Balance Right

Aerotight tests and verifies airtightness against AS/NZS ISO 9972, but the value isn’t just the number on the report. It’s catching the gap between “sealed” and “sealed and properly ventilated” before it becomes a mould claim two years after handover.

Our process starts at schematic design, not on-site with a blower door in hand, because the ventilation conversation needs to happen at the same time as the airtightness conversation, not after.

If you’re designing or building a high-performance envelope and haven’t locked in the ventilation strategy yet, that’s the conversation to have before your next site audit, not after your final test.

Frequently Asked Questions

Does an airtight house need ventilation?

Yes. The tighter the building, the more essential mechanical ventilation becomes, because natural, accidental air exchange has been deliberately eliminated.

Can airtightness cause mould?

Airtightness on its own doesn’t cause mould. Airtightness without a matching ventilation strategy does, because moisture that used to escape through leaks now has nowhere to go.

What's the Australian standard for airtightness testing?

AS/NZS ISO 9972, tested via blower door at a 50 Pa pressure differential, alongside National Construction Code requirements.
Make-up Air Design

What Make-Up Air Design Is Actually Trying to Achieve

Home What Make-Up Air Design Is Actually Trying to Achieve Posted by Joel Symmans Key Takeaways The Core Purpose of Make-Up Air: Make-up air replaces ...
Read More →
Airtightness Consultant

Airtightness Performance on Green Star Projects Starts With Trade Coordination

Home Airtightness Performance on Green Star Projects Starts With Trade Coordination Posted by Joel Symmans Key Takeaways Airtightness isn’t owned by one trade. Electricians, plumbers, ...
Read More →
Airtightness Consultant

Airtightness Consultant Role in Construction: Why One Partner Should See It Through

Home Airtightness Consultant Role in Construction: Why One Partner Should See It Through Posted by Joel Symmans Key Takeaways An airtightness consultant’s job starts at ...
Read More →

Get a preliminary blower door test before your compliance test!

Find out which of these 10 details are leaking while they’re still cheap to fix. Book an appointment with Aerotight.

Need airtightness testing for compliance or project verification? Submit the form and our team will reach out to you shortly.

Name(Required)
This field is for validation purposes and should be left unchanged.

The 10 Most Common Causes of Air Leakage on Construction Projects

The 10 Most Common Causes of Air Leakage on Construction Projects (And How to Catch Them Early)

Key Takeaways

The same 10 details cause the vast majority of air leakage failures across Australian construction projects, regardless of building type.

Most of these leaks aren't caused by bad materials, they're caused by trade sequencing and unclear responsibility at junctions between trades.

Service, ceiling, and electrical penetrations are consistently the highest-frequency leak points because so many different trades pass through the same wall.

Catching these details at schematic design and during site audits is dramatically cheaper than finding them on final test day.

Every one of these 10 causes is preventable with the right detailing, sequencing, and a preliminary test before the formal AS/NZS ISO 9972 test.

Run enough blower door tests and a pattern shows up fast: it’s almost never the wall itself leaking. It’s the 10 places where something else, a pipe, a duct, a joint, a shaft, passes through it. These junctions get handed between trades, and air leakage is what happens in the gap between “someone else will seal that” and the final test.

Here are the 10 details that cause the majority of air leakage failures on-site, and what to watch for on your next project.

Why Air Leakage Keeps Happening on the Same 10 Details

Every one of these points has one thing in common: two different trades meet at the same junction, and neither one owns the airtightness outcome.

The plumber isn’t thinking about the air barrier. Neither is the electrician, the mechanical contractor, or the façade installer. That’s not a workmanship problem; it’s a coordination problem, and it’s exactly why Aerotight runs project workshops before a single wall goes up.

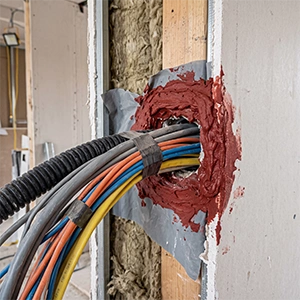

1. Service Penetrations

Any pipe, cable, or service passing through the envelope creates a gap that has to be sealed on both sides, not just packed with insulation. Insulation stops heat transfer, it doesn't stop air movement. This is one of the highest-frequency leak points on almost every project because there are simply so many of them.

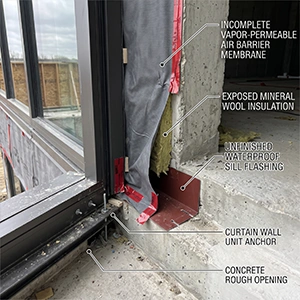

2. Window and Door Interfaces

The window or door unit itself is rarely the problem, it's the interface between the frame and the surrounding wall structure. Membrane laps, sealant continuity, and correct sequencing (does the membrane go over or under the frame flange?) all matter more than the product spec.

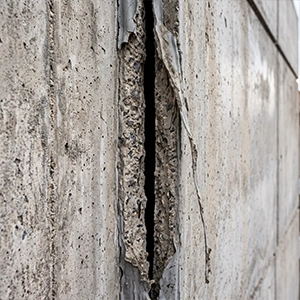

3. Façade Joints

Movement and expansion joints in the façade are designed to move, which makes them one of the hardest details to seal permanently. The wrong backing rod or sealant choice fails under thermal movement, reopening the leak path months after handover.

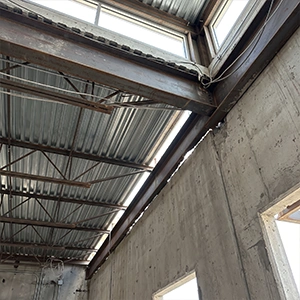

4. Roof-to-Wall Junctions

This junction sits at the intersection of two completely different air barrier systems, wall and roof, usually installed by two different trades on two different schedules. If the two systems aren't detailed to physically lap and connect, there's a continuous gap running the length of the building.

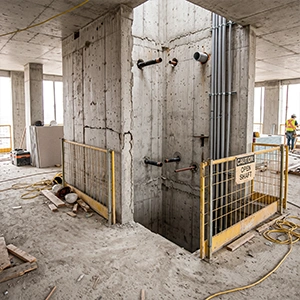

5. Lift Shafts

Lift shafts are notorious for air leakage because they're often treated as a structural or fire problem, not an airtightness one. Shaft walls have multiple penetrations for controls, ventilation, and structural connections, and the shaft itself can act like a chimney, pulling air through any gap in the envelope around it.

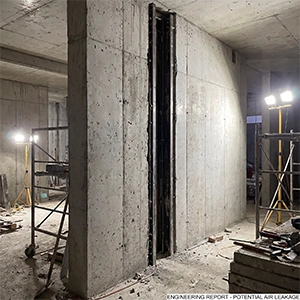

6. Expansion Joints

Similar to façade joints but structural rather than cosmetic, expansion joints in slabs and walls need a sealing product rated to handle ongoing movement without cracking or separating. A static sealant in a dynamic joint is a leak waiting to happen.

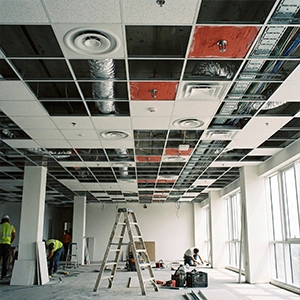

7. Ceiling Penetrations

Downlights, sprinklers, exhaust fans, cable trays, HVAC diffusers: ceilings in commercial and residential builds alike are riddled with penetrations, and the ceiling plane is frequently treated as "not part of the envelope" when it absolutely is, especially in top-floor or single-storey applications.

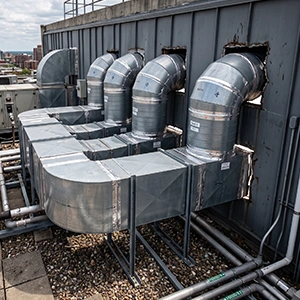

8. Mechanical Ductwork

Ductwork passing through the envelope needs an airtight seal around the duct itself, separate from the duct's own internal air-tightness rating. These are two different requirements and it's a common mistake to assume a well-sealed duct system means a well-sealed penetration.

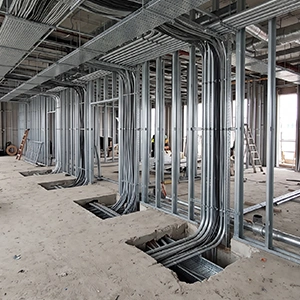

9. Electrical Penetrations

Conduits, cable trays, and switchboard penetrations are usually installed early and forgotten about by the time the airtightness detailing is being finalised. By final fit-out, these penetrations are often buried behind finishes, making them expensive to access and reseal if missed.

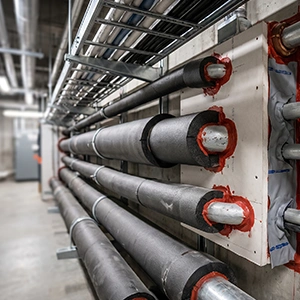

10. Fire-Stopping Interfaces

Fire-stopping and air-sealing aren't automatically the same thing. A fire-rated penetration seal is tested for fire and smoke performance, not necessarily for air permeability, so this detail needs a product and installation method that satisfies both requirements at once, particularly in healthcare, high-rise, and life safety applications.

How to Stop These Leaks
Before They Cost You a Failed Test

Catch Them at Schematic Design, Not on Test Day

Every one of these 10 causes is dramatically cheaper to fix on paper than on-site. Reviewing drawings and defining the air barrier line before construction starts, the second step in Aerotight’s process, catches most of these before a single penetration is cut.

Site Audits Catch What Drawings Can't

Drawings don’t account for what actually happens when six trades are on-site at once. Site audits during construction, carried out by qualified builders, catch the gap between the detail as drawn and the detail as installed, before it’s buried behind linings.

Frequently Asked Questions

What is the most common cause of air leakage in buildings?

Service penetrations, pipes, cables, and ducts passing through the envelope, are consistently the highest-frequency leak point, simply because there are so many of them on a typical project.

Can air leakage be fixed after construction is finished?

Yes, but it’s significantly more expensive once penetrations are buried behind finishes. Preliminary testing during construction identifies leaks while they’re still accessible.

Is fire-stopping the same as air sealing?

No. Fire-stopping products are rated for fire and smoke performance. Achieving both fire compliance and airtightness at the same penetration requires a detail and product suited to both.
